AxEnd
Helping increase safety and reduce running costs for senior living communities and health systems.

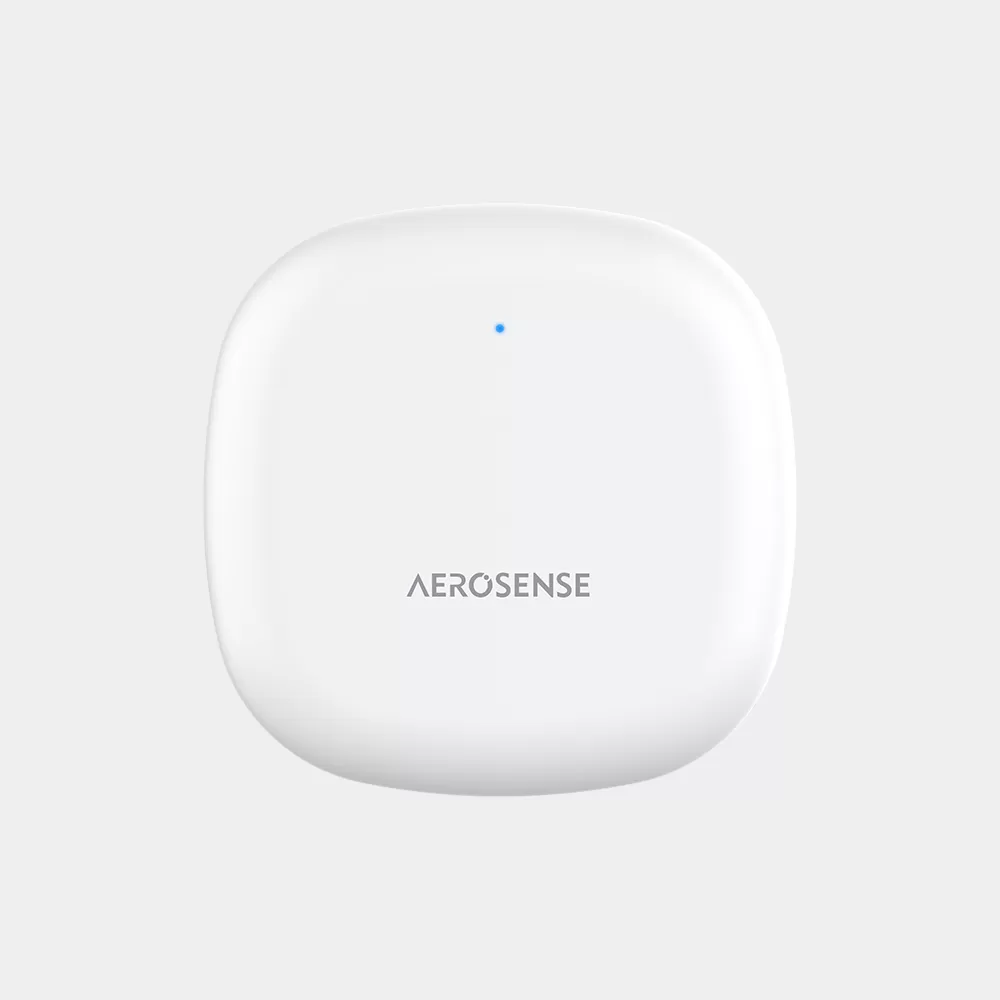

A smart sleep monitoring device to provide contactless monitoring of data such as the user’s in-bed/off-bed status, body movement, and vital signs. It can generate professional sleep analysis reports, gain insights into changes in the user’s health status and behavior habits.
| Model | AASW-2D |
| Product Features | In-bed/Out-of-bed detection, body movement, vital signs. |
| APP Functions | Oversleeping alerts, frequent night activities, wandering at night, sleep reports, etc. |
| Radar type | FMCW |
| Frequency band | 24GHz |
| Detection range | 1.5(m) / 4.92(ft) |
| Effective field of view (horizontal) | -40°~20° |
| Effective field of view (vertical) | -42°~42° |
| Communication Interface | 2.4G Wi-Fi |
| Voltage Rating | DC 5V/1A Max |
| Power Consumption | 1.5W |
| Operating Temperature | -10~50 (℃) / 14~122 (°F) |
| Storage Temperature | -20~70 (℃) / -4~158 (°F) |
| Dimensions | 83*83*58 (mm) / 3.3*3.3*2.3 (in) |
| Weight of the unit (approx.) | 80g |

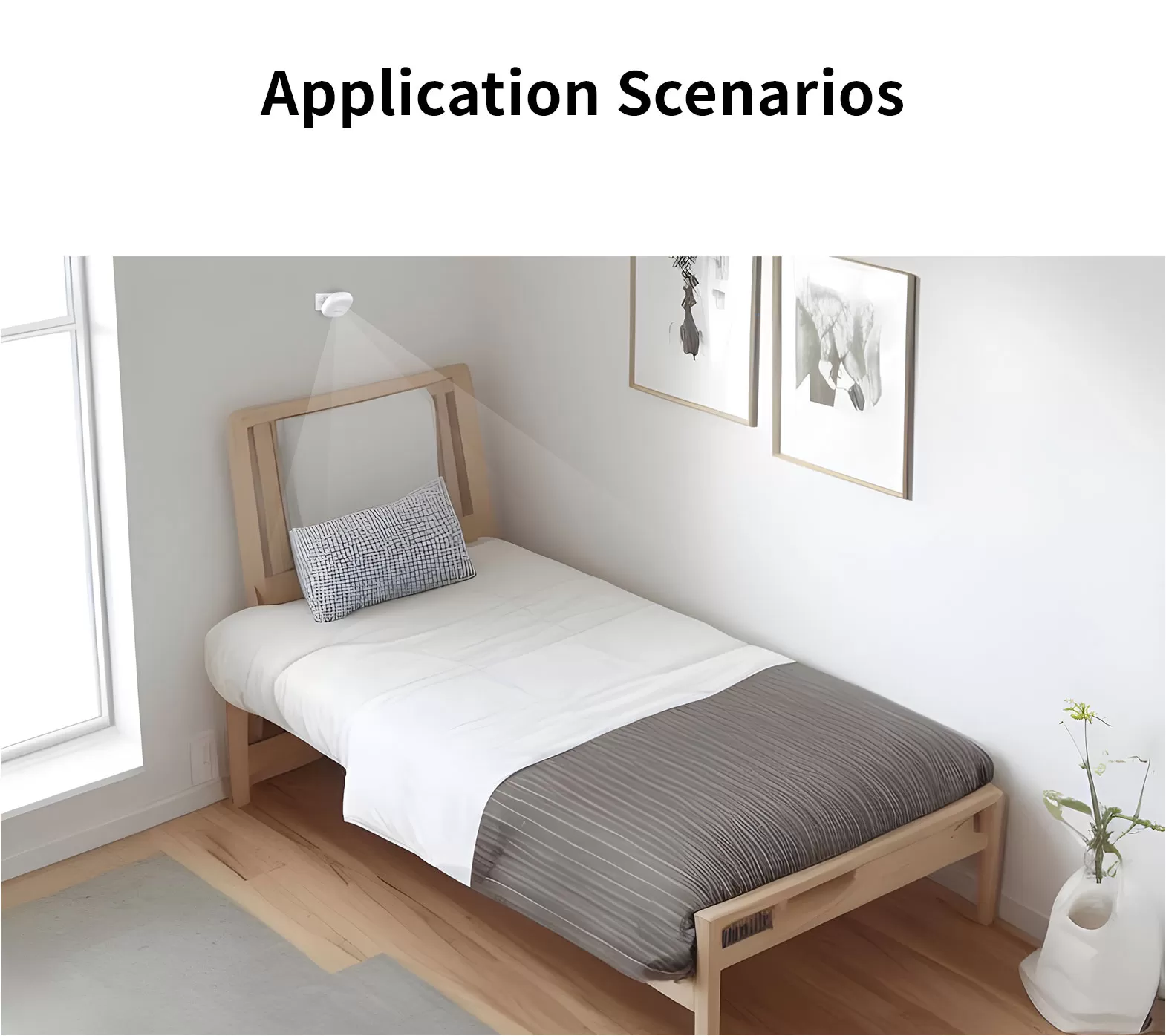

| Installation height | about 1m (3.3ft) away from the |
| Communication protocol | SDK / API |
| Communication Interface | WiFi for data transmission, BLE for network configuration. |
Notes
Appearance, specifications, and functions may vary and are subject to change without notice.
