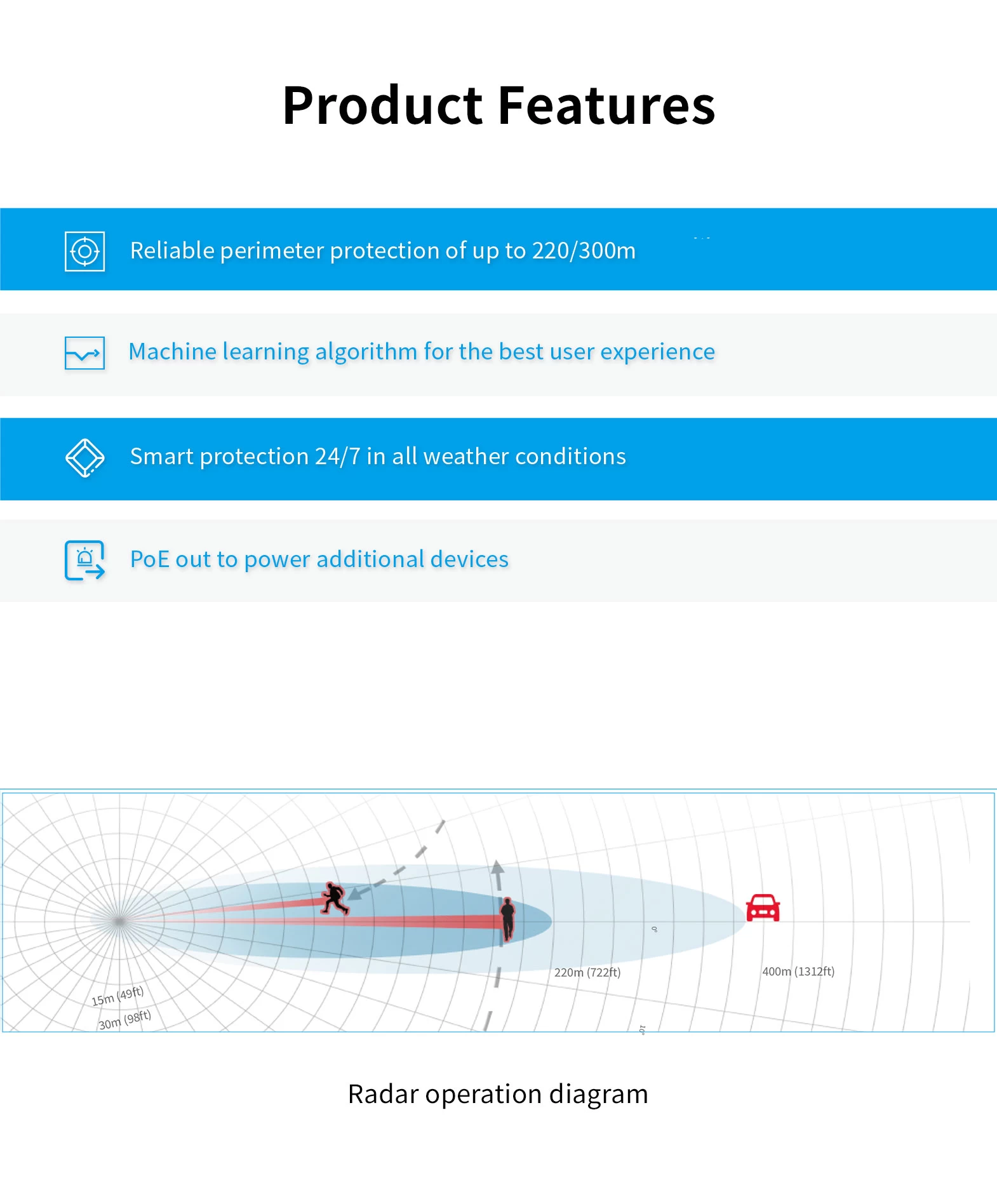

Smart Radar AI-Video Box is a smart hardware device with powerful algorithm, and works with perimeter radar to create seamless interaction with bullet and PTZ cameras. Radar actively detects any potential intrusion in the zone, and video camera will see to the zone and make video analytic confirmation. With this, the alarm accuracy is increased, and false alert rate is lowered dramatically.
Simply install the hardware, open the web interface in your web browser, add cameras and calibrate, set alert zones, and then sit back and relax. The Smart Radar AI-Video Box has an automatic track & classification on targets built inside.
The Smart Radar AI-Video Box can be added to our perimeter security platform software, and display the radar zone and intrusion track on GIS map, alarm video can pop up and be recorded. With radar and camera, it works as one reliable detector for the alarm zone.
Now this box can support all our radar models for both perimeter and area surveillance protection. It works with third party ONVIF PTZ and bullet cameras as well. So it can improve existing CCTV system by adding radar together.
| Model | AXPB-120 |
| Operation System | Linux |
| Camera Supported | 2CH 1080P Bullet or PTZ Speed Dome |
| RTSP & AI | Yes |
| Protocol | Onvif，TCP/IP |
| Browser Supported | Chrome 57+,IE11，Firefox 52+ |
| Interface | Ethernet 1000M & RS485 |
| Alarm Output | NO/NC Relay *2;GPIO *2 |
| Power Supply | 12 V2A/ PoE |
| Power Wattage | 12W |
| Dimension | 235 mm *103 mm*35 mm |
| Work Temperature | -25℃ ~ +65℃ |
| Weight | 0.8kg |
| Certification | CE, FCC |
The perimeter security alarm software is to manage multiple perimeter surveillance terminals, AI-video boxes with security radar and video surveillance cameras, integrated smart algorithm. The perimeter security alarm management platform software is the hub of the whole perimeter security system. When the intruder enters the alarm zone area, the radar sensor delivers the intrusion location through active detection, accurately determines the type of intrusion with AI vision, records video of the intrusion process, and reports to the perimeter security alarm management platform, so active, three- dimensional monitoring and early warning of the perimeter is addressed.
Smart radar AI-video perimeter security system can work with the security system in the market including CCTV and Alarm System. The perimeter surveillance terminals and smart AI boxes supports ONVIF & RTSP, also comes with alarm outputs like relay and I/O. Besides, the SDK/API is available for third party security platform integration.
